Liquid Cooling Super Charging Station

LHKCEDC2-480KW/2L/GB-10 is an innovative liquid-cooled booster architecture that uses the most advanced liquid cooling technology and DC bus architecture. The charging host can realize energy conversion and power distribution, with a maximum output power of 720 kilowatts.

Introduction of Product

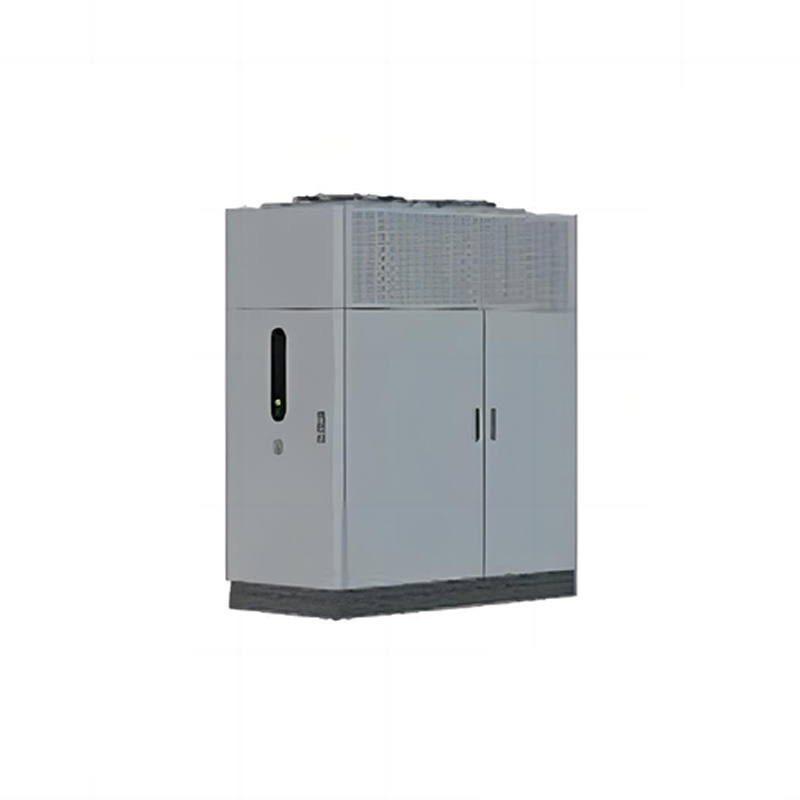

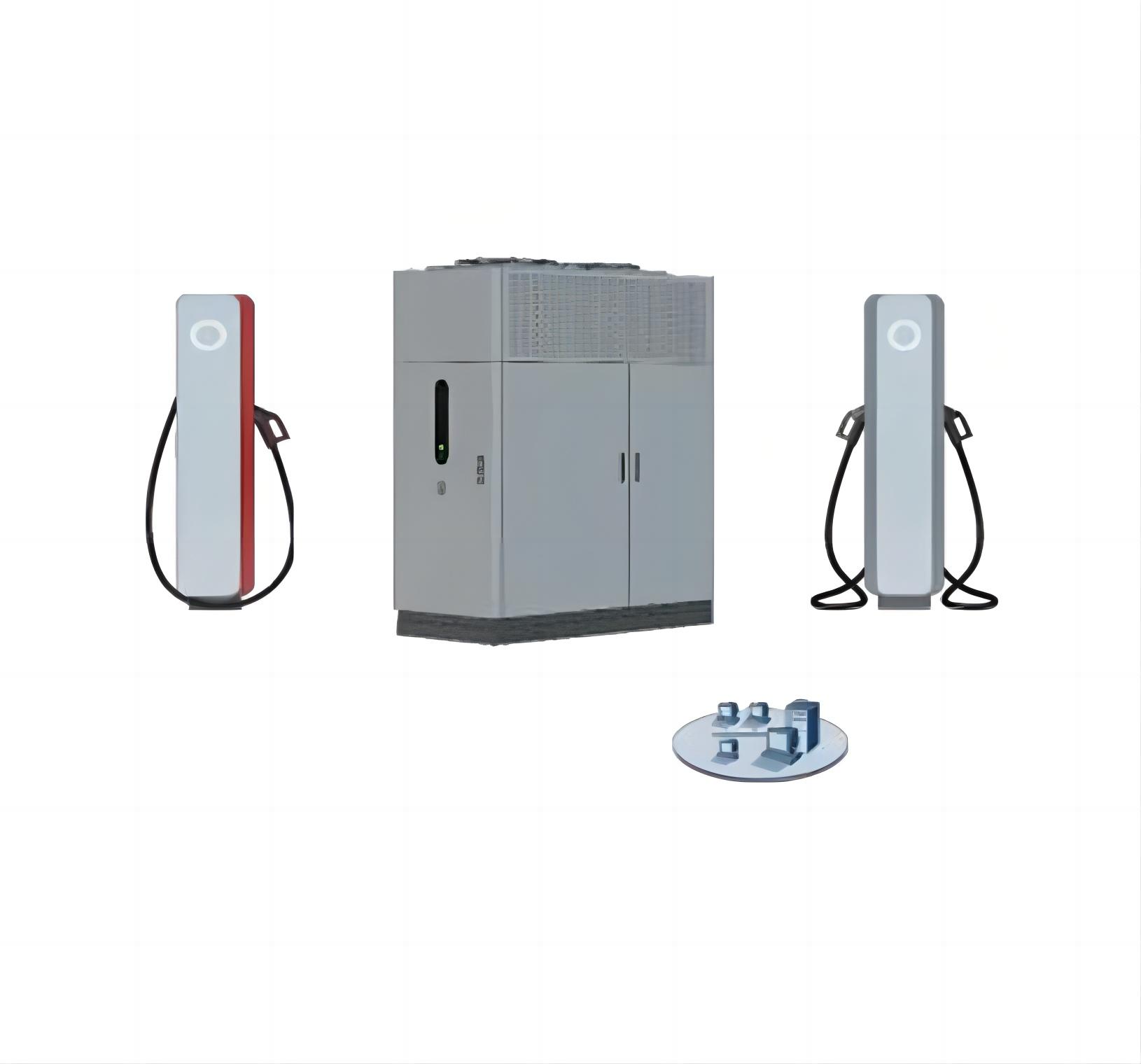

LHKCEDC2-480KW/2L/GB-10 is an innovative liquid-cooled boost architecture developed by an industry-leading company for electric vehicle charging. Unlike traditional air-cooled integrated systems, it uses the most advanced liquid cooling technology and DC bus architecture. The system consists of a charging host and a charging terminal. The charging host can realize energy conversion and power distribution, with a maximum output power of up to 720 kW. It has built-in 120 kW AC/DC and 60 kW DC/DC liquid cooling modules and power sharing units, which can achieve 12-channel line output. The terminal is optional and configurable, supporting both liquid cooling and natural cooling.

Product Features:

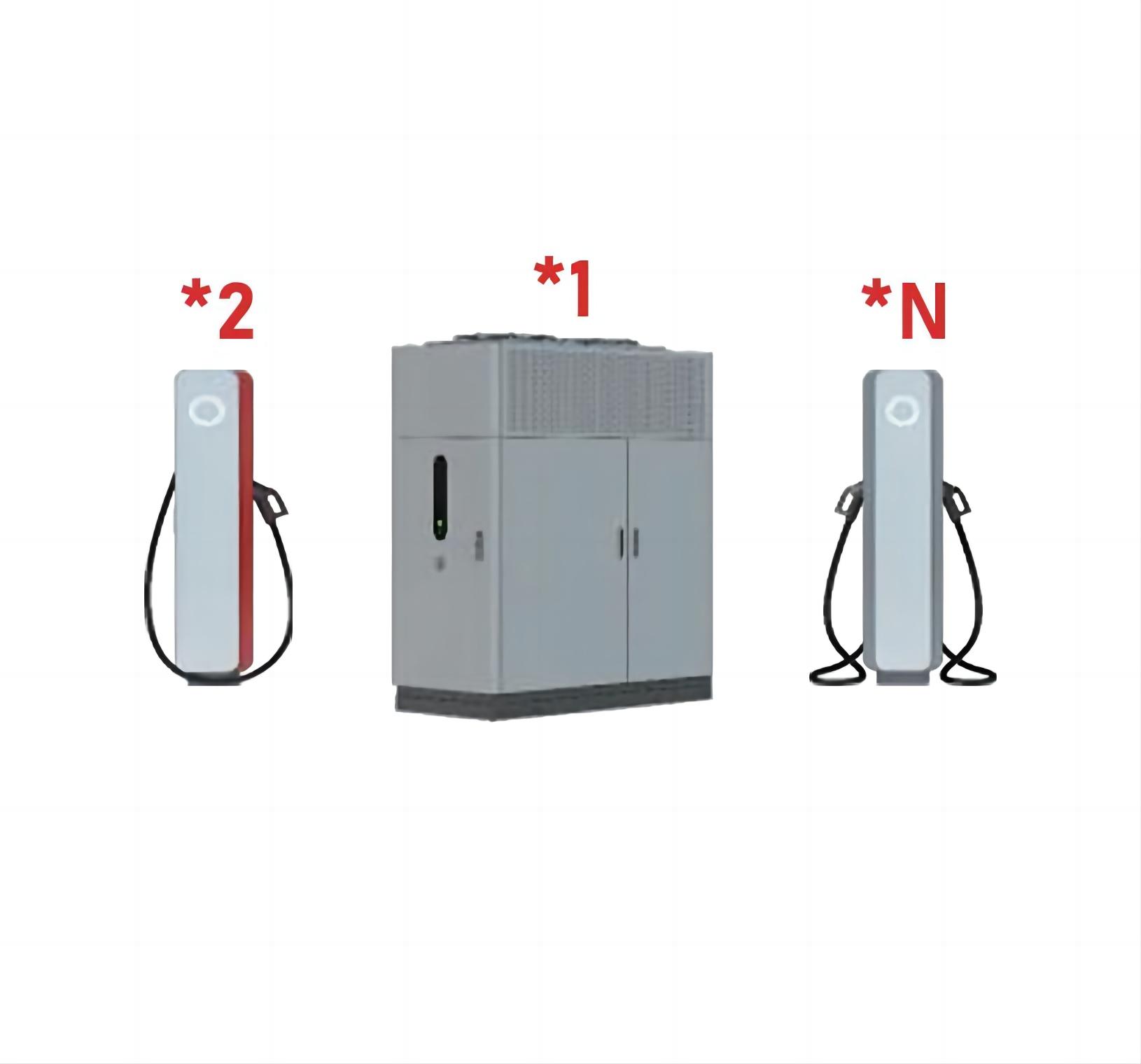

  • Ultra-Fast Integration: Incorporates a supercharging system that maximally supports 12-channel line output.
  • Supports Mixed Liquid-Cooled and Air-Cooled Terminals: Offers compatibility for a combination of liquid-cooled and natural-cooled terminals.
  • Charging Host with Liquid-Cooled Terminals: The charging host, when paired with liquid-cooled terminals, supports 480kW constant power output.
  • Liquid Cooling System: Ensures safety and reliability through water-electric isolation design. Supports long-term use with board-and-liquid transport, featuring an integrated die-cast liquid-cooled charging module with a lifespan of 10 years. Environmentally friendly and efficient, with the charging host achieving an end-to-end efficiency of 95%+.
  • Direct Current Busbar: Utilizes power pooling and intelligent algorithms to effectively enhance grid utilization rates. Supports smooth DC stacking storage, thereby increasing the end-to-end efficiency of the entire station.

This charging pile is suitable for fast charging of new energy vehicles, providing users with convenient and efficient charging services, and is an advanced choice for the next generation of new energy vehicle charging equipment.

Charging host specifications

Basic information Product model LHKCDC3-720KW/12L/GB-10
Dimensions (width*depth*height) 800 mm x1700 mm x 2150 mm
Installation method Floor-mounted (supports transport with board and liquid)
System efficiency Maximum efficiency 95.5%
Rated power 600kw
Cooling method Liquid cooling
Protection level IP55
Number of guns supported 4-12
Communication interface 4G, FE (northbound)
Input characteristics Input voltage 380Vac+15%, three-phase five-wire system
Input frequency 45Hz ~ 66Hz
Input current 1150 A
Power factor 0.99 (load>50%)
Harmonics ≤5% (load>50%)
Input power distribution AC 800Ax3P circuit breaker; single transformer 2-way incoming line (360KW per line)
Output characteristics Output voltage 200-1000Vdc
Current regulation accuracy ≤+1%
Voltage regulation accuracy ≤±0.5%
Environmental indicators Working temperature -35*C~+50*C
Storage temperature -35*C~+70°C
Altitude ≤2000m
Relative humidity 5%RH ~95%RH
Noise level ≤55 dB@25°C (quiet mode), ≤65 dB@25”C (standard mode)
Safety function Input overvoltage protection, undervoltage protection, output overvoltage protection, constant power overload protection, short circuit protection, grounding protection, overtemperature protection, lightning protection, emergency stop protection, leakage protection, insulation detection, door opening protection, battery reverse connection protection, relay adhesion protection, water immersion protection, smoke alarm.
Product specification GB/T18487.1-2015,NB/T33001-2018,NB/T33008.1 -2018
Host terminal communication interface FE, recommended ring network, screen twisted pair FTP Cat5E
Host terminal communication protocol GOOSE+ MODBUS -TCP
Auxiliary power supply standard Host 220Vac auxiliary power supply output

Accessories Specifications

Basic information Product model Supercharger terminal DC fast charging terminal
Charging power Maximum 600KW Rated 360kw, single gun 180KW
Dimensions (width*depth*height) 340*295*1700 390*295*1700
Number of charging guns 1 2
Gun line length 3.5m 5m
Installation method Floor mounted Floor installation
Protection level IP55 IP55
Heat dissipation method Liquid cooling Natural cooling
Environmental indicators Working temperature -35~+50°C -35~+50°C
Noise level ≤55dB-25°C ≤50dB@25°C
Storage temperature -35°C~+70°C -35°C~+70°C
Relative humidity 5%RH ~95%RH 5%RH ~95%RH
Altitude ≤2000m ≤2000m
Output characteristics Output voltage 200~1000Vdc 200~1000Vdc
Charging current Maximum 600A 250A
Product specification   GB/T27930-2015.JG1149-2022 GB/T18487.1-2015, NB/T33001-2018.NB/T33008.1-2018, GB/T27930-2015.JG1149-2022
Safety function Output overvoltage protection, short circuit protection, protective grounding continuity detection, over-temperature protection, emergency stop protection, electrical protection, insulation detection, door opening protection, power failure protection, battery reverse connection protection, contactor adhesion protection, low liquid level alarm
