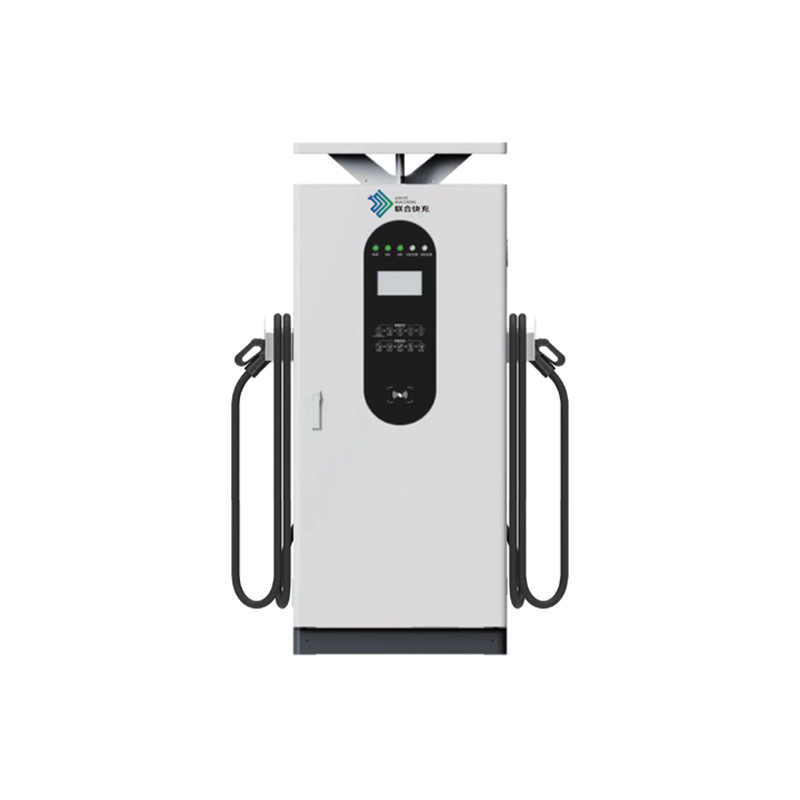

DC constant power charging pile

LHKCEDC1-120/160KW/2L/GB-20 is Hesucar’s new generation of integrated new energy vehicle DC constant power fast charging pile. The product is simple to operate, safe and reliable, occupies a small area, and has good dust and water resistance. The protection level reaches |P54. The charging module adopts an isolated air duct glue filling design with high reliability. It can be used for installation and operation in various harsh outdoor environments.

Introduction of Product

LHKCEDC1-120/160KW/2L/GB-20 is Hesucar's new generation of integrated new energy vehicle DC constant power fast charging pile. The product is simple to operate, safe and reliable, occupies a small area, and has good dust and water resistance. The protection level reaches |P54. The charging module adopts an isolated air duct glue filling design with high reliability. It can be used for installation and operation in various harsh outdoor environments.

Product Features:

  • Simple Operation: Easy to use, allowing users to operate with ease.
  • Safe and Reliable: With high reliability and safety, users can trust its performance.
  • Small Footprint: Suitable for limited spaces, saving space effectively.
  • Dust and Water Resistance: Equipped with excellent dust and water resistance, with a protection rating of IP54, suitable for outdoor installation in various harsh environments.
  • Modular Design: The power conversion of the charging pile adopts a modular design, with a built-in 30/40KW constant power charging module. It can flexibly accommodate power configurations ranging from 60KW to 160KW, making it an ideal choice for DC charging.
  • High Reliability: Designed with isolated airflow channel encapsulation, ensuring stable and reliable operation.
  • Multiple Output Configurations: Meets the charging needs of different capacity electric vehicles, including single-gun output, dual-gun output, dual-gun equal charging output, and dual-gun automatic distribution output, suitable for a wide range of public and dedicated charging stations for fast charging.

This charging pile is suitable for fast charging of new energy vehicles, providing users with convenient and efficient charging services, and is an advanced choice for the next generation of new energy vehicle charging equipment.

Charging host specifications

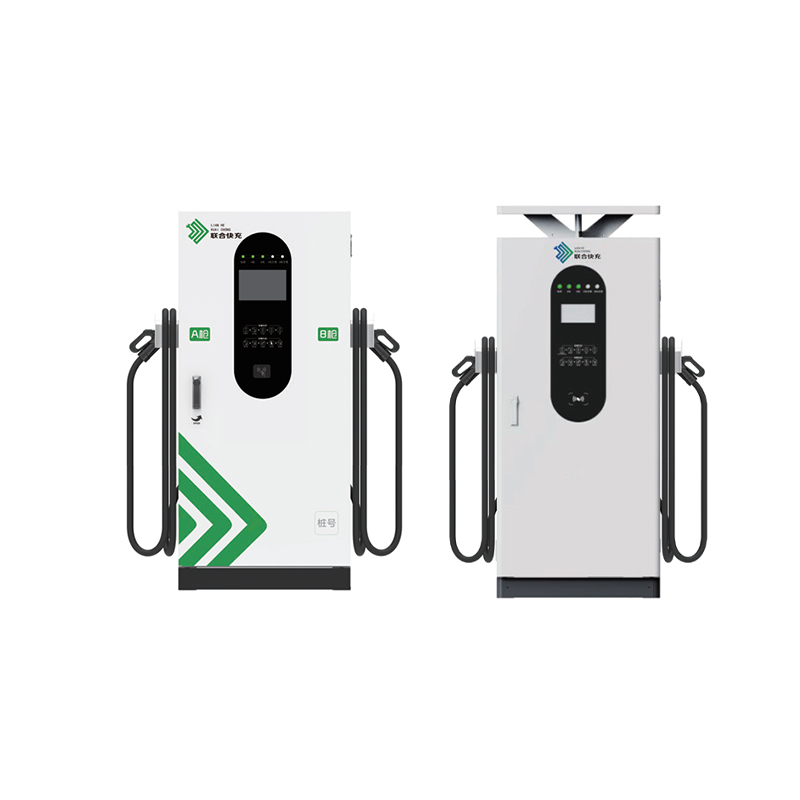

Basic information Product model LHKCEDC1-120/160KW/2L/GB-10 LHKCEDC1-120/160KW/2L/GB-20
Dimensions (width*depth*height) 800x650x1850mm 750x350x1850mm
Installation method Floor installation (supports board transportation)
Rated power 120/160KW
Input characteristics Input frequency 45-65Hz
Input voltage Three-phase five-wire AC input, AC input range 380Vac+15%
Power factor >0.99
Total harmonic current <5% (rated input)
Output characteristics Output voltage regulation accuracy <±0.5%
Output voltage DC 150V-1000V
Output maximum current 250A*2
Output maximum efficiency >95.0% (rated input and output)
Output maximum power 320kW, constant power above 300V
Environmental indicators Operating temperature range -30 °C to 70°C , 50°C ambient temperature, full load operation, when the temperature exceeds 50°C, the output power decreases by 5% for every 1°C increase in temperature
Operating humidity range 0 to 95%
Operating altitude range 2000 meters, derating above 2000 meters
Safety functions Input overvoltage protection, undervoltage protection, output overvoltage protection, constant power overload protection, short circuit protection, grounding protection, overtemperature protection, lightning protection, emergency stop protection, leakage protection, insulation detection, door opening protection, battery reverse connection protection, relay adhesion protection, water immersion protection, smoke alarm.
Product Specifications GB/T18487.1 -2015,NB/T33001 -2018,NB/T33008.1 -2018
Metering method DC metering supports metering of power output from each charging port, meeting JG1149-2022 technical requirements
Start charging APP/swipe card/scan code
Charging mode Automatic full charge/fixed power/fixed amount/fixed time
BMS communication protocol GB/T 27930-2015
Background communication protocol Teddy Charge, strategic third-party cooperation platform Xiaoju, Cloud Fast Charge, customer's own platform
Auxiliary power supply Host 220Vac auxiliary power supply output

Product Solutions

USER DEMAND

  • Willing to invest in charging station construction
  • Hope to upgrade existing charging station equipment
  • Hope to provide charging supporting service facilities for residential buildings
  • Have customer channels and hope to become an agent to sell charging piles
  • Have a station with charging piles, but no charging management platform
  • Hope to improve the operation of existing charging stations and increase revenue
  • Have site resources and hope to build a station
  • Have power resources and hope to build a station

SOLUTION

  • Provide various types of charging piles to meet the needs of different charging scenarios
  • Provide a complete dealer agency policy
  • Provide flexible charging pile sales financial service solutions

  • Charging platform access services, shared platform users
  • Flexible settlement services

  • Customized solutions (site assessment, investment return calculation feasibility study report, etc.)
  • Professional operation and maintenance team services

Dedicated fast charging station

Research and developmentintroduction

Microgrid

A vital part of smart grids, microgrids operate reliably in both off-grid and grid-connected modes, enabling intelligent interaction among distributed generation, energy storage, and charging facilities. With advanced energy management systems, they ensure system stability, optimize energy usage, and minimize losses while supporting the closed-loop utilization of renewable energy, contributing to carbon neutrality.

EMS

Serving as the microgrid's central control, EMS manages data, monitors, controls, and optimizes energy storage system operations efficiently. It adjusts power and voltage parameters to meet load demands, coordinates with the main grid, and reduces energy consumption and system losses. EMS also facilitates islanding operation and reclosing strategies, ensuring system reliability during faults.

EMEWS

This system monitors microgrid operations in real-time, including photovoltaic, energy storage, and charging facilities, enhancing operational efficiency through data analysis and intelligent warnings. Equipped with battery management and communication interfaces, it promptly identifies issues, supports integrated energy station scheduling, and provides data for public safety warnings.

CHARGING PILE MANUFACTURIN

A single-phase AC charging pile

Raw materials

Charging pile shell, circuit board, battery, motor, sensors, etc.

Assembly Production

Assemble the various components according to the design drawings to ensure that the charging pile meets the standard electrical and mechanical performance.

Testing and Debugging

After assembly, production personnel must conduct testing and debugging on the charging pile to ensure performance meets standards. This involves checks on appearance, insulation performance, electrical performance, and road testing to ensure stable performance in various environments.

A single-phase AC charging pile

EXHIBITION HAL INTRODUCTION

APPLICATION SCENARIOS

Q: What is your packing terms?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have a legally registered patent, after getting your letter of authorization, we can pack the goods in your branded boxes.

Q:.Is there any relevant certification for customized products?
A: We will confirm the certificates required for the product with the customer before customization, and complete all the agreed certifications before the product is delivered, and write it into the contract agreed by both parties.

Q: Are they global versions?
A: Yes, our products are universal in all countries.

Q: Are you a factory or a trading company?
A: We are a manufacturer, welcome to visit our factory at any time!

Q: What payment methods do you accept?
A: We accept all payment methods including PayPal, T/T, Credit Card, Alibaba Assurance, Western Union and Bank Transfer. Please contact us for more details. But if you have different requirements, we may discuss together.

Q: What is your payment terms?
A: T/T 30% as deposit, 70% paid off before delivery. We will show you the photos of the products and packages before you pay the balance.

Q: What is your delivery method?
A: FOB, CFR, CIF, EXW, DDU, Express Delivery.
